Securing ECS deployments with Github Actions

11.12.2023 — Github Actions, AWS, ECS, Terraform, Testing, Infrastructure — 9 min read

Pipelines

One of the largest responsibilities of a DevOps engineer is making great CICD pipelines. I've worked on many in my career; some that deployed services to Kubernetes clusters. A few that published secure base images for internal teams to use for deploying their microservices to cloud environments. I even use a pipeline to publish this blog and you can see where I wrote about that in cloudkrunch.com/the-cloudkrunch-blog and cloudkrunch.com/cicd-improvements.

So to show off all my experience with creating pipelines I decided to set up a project that highlighted just that and also some of my security background.

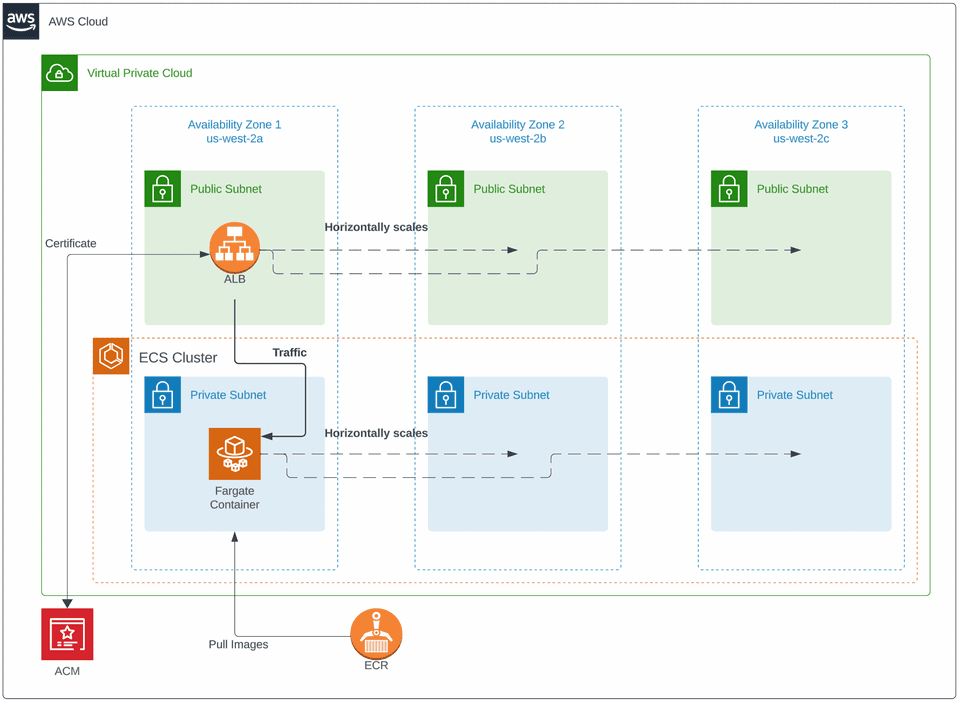

Project Overview

This project consists of two parts:

ECS service that is served traffic by an ALB

Github actions pipeline that deploys changes to ECS and runs secrets scans, unit tests, integration tests, and SAST/DAST scans

Creating the AWS infrastructure

All of the infrastructure components in this project are created in Terraform and I specifically use Terragrunt to manage my Terraform state and providers. Here's a list of the components.

VPC with public and private subnets

module "vpc" {
  source = "cloudposse/vpc/aws"

  namespace = "eg"
  stage     = "dev"
  name      = "projects"

  ipv4_primary_cidr_block = "10.0.0.0/16"

  assign_generated_ipv6_cidr_block = false
}

module "dynamic_subnets" {
  source = "cloudposse/dynamic-subnets/aws"

  namespace                      = "eg"
  stage                          = "dev"
  name                           = "services"
  availability_zones             = ["us-west-2a","us-west-2b","us-west-2c"]
  vpc_id                         = module.vpc.vpc_id
  igw_id                         = [module.vpc.igw_id]
  ipv4_cidr_block                = ["10.0.0.0/16"]
  nat_gateway_enabled            = true
}

ECR with on-push scanning enabled and lifecycle policy

locals {
  repo_name = "sample-service"
}

resource "aws_ecr_repository" "sample_service_repo" {

  name                 = local.repo_name
  image_tag_mutability = "MUTABLE"

  image_scanning_configuration {
    scan_on_push = true
  }

  encryption_configuration {
    encryption_type = "AES256"
  }
}

resource "aws_ecr_lifecycle_policy" "lifecycle" {
  repository = aws_ecr_repository.sample_service_repo.name

  policy = <<EOF
{
    "rules": [
        {
            "rulePriority": 1,
            "description": "Keep last 5 images",
            "selection": {
                "tagStatus": "any",
                "countType": "imageCountMoreThan",
                "countNumber": 5
            },
            "action": {
                "type": "expire"
            }
        }
    ]
}
EOF
}

ECS cluster with cloudwatch logs encrypted with Customer Managed Key

resource "aws_kms_key" "cluster_logs" {
  description             = "cluster logs KMS key"
  deletion_window_in_days = 7
  enable_key_rotation     = true
}

resource "aws_cloudwatch_log_group" "cluster_logs" {
  name = "cluster-logs"
}

resource "aws_ecs_cluster" "general" {
  name = "general-cluster"

  configuration {
    execute_command_configuration {
      kms_key_id = aws_kms_key.cluster_logs.arn
      logging    = "OVERRIDE"

      log_configuration {
        cloud_watch_encryption_enabled = true
        cloud_watch_log_group_name     = aws_cloudwatch_log_group.cluster_logs.name
      }
    }
  }
}

ECS service IAM roles

resource "aws_iam_role" "ecs_task_execution_role" {
  name = "sample_service_execution_role"
  assume_role_policy = <<EOF
{
 "Version": "2012-10-17",
 "Statement": [
   {
     "Action": "sts:AssumeRole",
     "Principal": {
       "Service": "ecs-tasks.amazonaws.com"
     },
     "Effect": "Allow",
     "Sid": ""
   }
 ]
}
EOF
}

resource "aws_iam_role" "ecs_task_role" {
  name = "ecs_sample_service_task_role"

  assume_role_policy = <<EOF
{
 "Version": "2012-10-17",
 "Statement": [
   {
     "Action": "sts:AssumeRole",
     "Principal": {
       "Service": "ecs-tasks.amazonaws.com"
     },
     "Effect": "Allow",
     "Sid": ""
   }
 ]
}
EOF
}

resource "aws_iam_role_policy_attachment" "ecs-task-execution-role-policy-attachment" {
  role       = aws_iam_role.ecs_task_execution_role.name
  policy_arn = "arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy"
}

ECS task definition

resource "aws_ecs_task_definition" "definition" {
  family                   = "sample_service"
  task_role_arn            = "${aws_iam_role.ecs_task_role.arn}"
  execution_role_arn       = "${aws_iam_role.ecs_task_execution_role.arn}"
  network_mode             = "awsvpc"
  cpu                      = "256"
  memory                   = "512"
  requires_compatibilities = ["FARGATE"]

  runtime_platform {
    operating_system_family = "LINUX"
    cpu_architecture = "X86_64"
  }

  container_definitions = jsonencode([
    {
      image = "${local.sample_service.image_url}",
      name = "${local.sample_service.name}",
      logConfiguration = {
        "logDriver": "awslogs",
        "options": {
            "awslogs-region" : "us-west-2",
            "awslogs-group" : "ecs-service-logs",
            "awslogs-stream-prefix" : "${local.sample_service.name}"
        }
      }
      portMappings = [
        {
          containerPort = 8080
          hostPort      = 8080
        }
      ]
      essential = true
    }
  ])
}

ECS service

resource "aws_ecs_service" "sample_service" {
  name            = local.sample_service.name
  cluster         = var.cluster_arn
  task_definition = aws_ecs_task_definition.definition.arn
  desired_count   = 1
  depends_on      = [aws_iam_role.ecs_task_role]
  launch_type     = "FARGATE"

  load_balancer {
    target_group_arn = module.alb.default_target_group_arn
    container_name   = local.sample_service.name
    container_port   = 8080
  }

  network_configuration {
    subnets = var.dynamic_subnets.private_subnet_ids
    security_groups = [ aws_security_group.sample_service.id ]
    assign_public_ip = false
  }
}

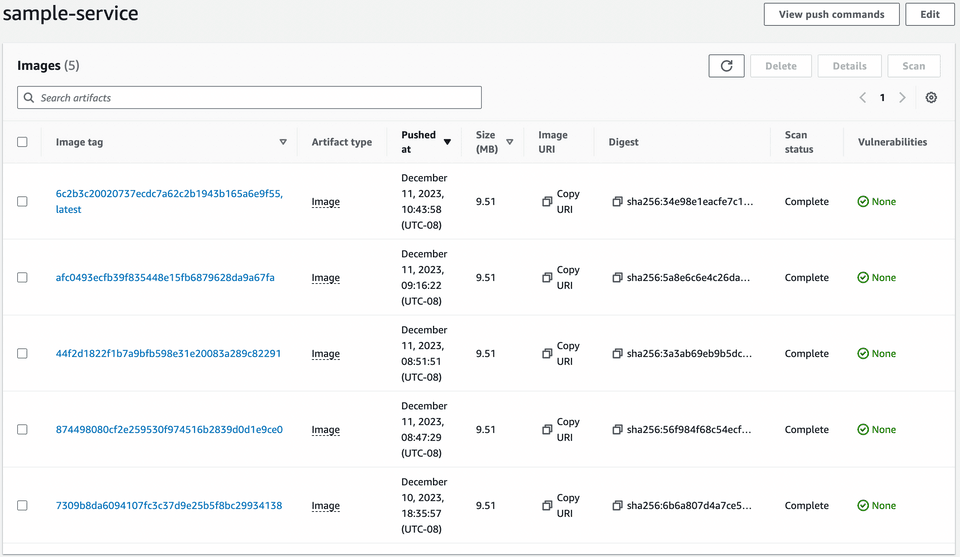

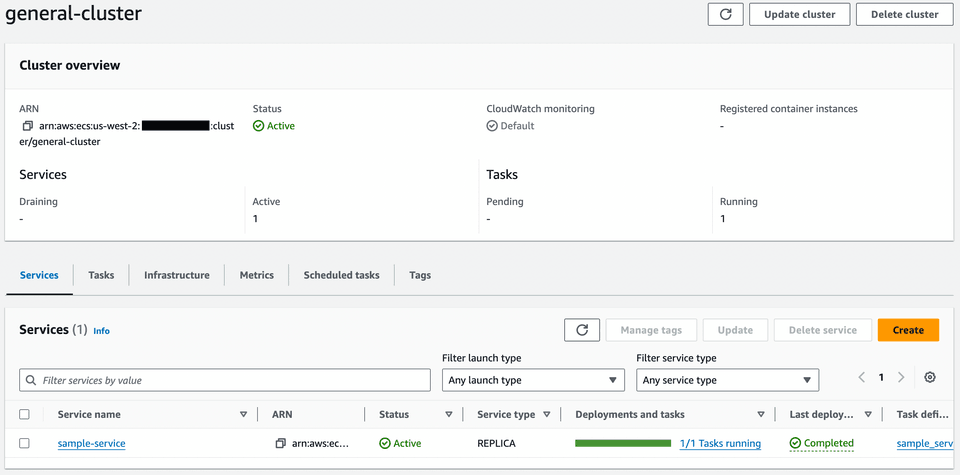

What it looks like in the cloud console.

Fine-grain policy for Github Actions deployment

There's a lot going on here, but I tried to be as specific as I can be to allow for least priviledge.

data "aws_iam_policy_document" "ecs_ecr_sample_service_doc" {

  # Be able to get a token for ECR
  statement {
    actions = [
        "ecr:GetAuthorizationToken",
        "ecs:DescribeTaskDefinition",
        "ecs:RegisterTaskDefinition",
    ]
    resources = [ "*" ]
  }

  # ECR repository related tasks
  statement {
    actions = [
        "ecr:BatchCheckLayerAvailability",
        "ecr:GetDownloadUrlForLayer",
        "ecr:ListImages",
        "ecr:DescribeImages",
        "ecr:BatchGetImage",
        "ecr:ListTagsForResource",
        "ecr:DescribeImageScanFindings",
        "ecr:CompleteLayerUpload",
        "ecr:UploadLayerPart",
        "ecr:InitiateLayerUpload",
        "ecr:BatchCheckLayerAvailability",
        "ecr:PutImage"
    ]
    resources = [
        var.ecr_sample_service_arn,
    ]
  }

  statement {
    actions = [
        "ecs:DescribeServices",
        "ecs:CreateTaskSet",
        "ecs:UpdateServicePrimaryTaskSet",
        "ecs:DeleteTaskSet",
        "elasticloadbalancing:DescribeTargetGroups",
    ]
    resources = [
        "*"
    ]
  }

  statement {
    actions = [
        "elasticloadbalancing:DescribeListeners",
        "elasticloadbalancing:ModifyListener",
        "elasticloadbalancing:DescribeRules",
        "elasticloadbalancing:ModifyRule",
    ]
    resources = [
        "arn:aws:elasticloadbalancing:us-west-2:${data.aws_caller_identity.current.account_id}:listener-rule/app/${module.alb.alb_name}/*"
    ]
  }

  statement {
    actions = [ "ecs:UpdateService" ]
    resources = [ aws_ecs_service.sample_service.id ]
  }

  statement {
    actions = [
        "elasticloadbalancing:DescribeTargetGroups",
    ]
    resources = [
        "arn:aws:elasticloadbalancing:us-west-2:${data.aws_caller_identity.current.account_id}:targetgroup/${module.alb.alb_name}*"
    ]
  }

  statement {
    actions = [ "iam:PassRole" ]
    resources = [
        aws_iam_role.ecs_task_execution_role.arn,
        aws_iam_role.ecs_task_role.arn
    ]
  }
}

Once all that is stood up we just need to add a credential for a deployment user as a secret in our Github repository.

Setup the pipeline

I ended up using the Github Action provided by each tool to construct my pipeline.

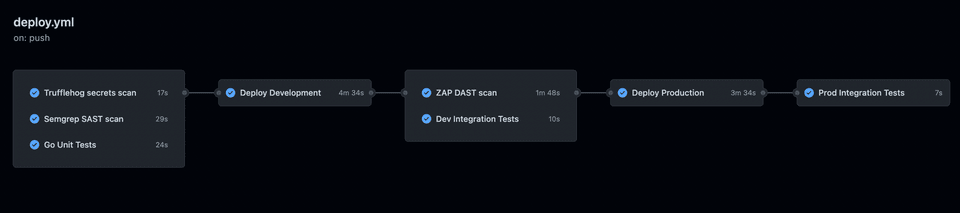

Here are all of the tools I used to set it up and the jobs in my deploy.yml workflow:

Trufflehog - Secrets scan

secrets_scan:
    name: Trufflehog secrets scan
    runs-on: ubuntu-latest
    defaults:
        run:
        shell: bash
    steps:
        - name: Checkout code
        uses: actions/checkout@v3
        with:
            fetch-depth: 0

        - name: TruffleHog OSS
        id: trufflehog
        uses: trufflesecurity/trufflehog@v3.63.2
        continue-on-error: true
        with:
            path: ./
            base: "${{ github.event.repository.default_branch }}"
            head: HEAD
            extra_args: --debug --only-verified

        - name: Scan Results Status
        if: steps.trufflehog.outcome == 'failure'
        run: exit 1 # Exit if secrets are found

Built-in Go tests

unit_tests:
    name: Go Unit Tests
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Setup Go
        uses: actions/setup-go@v4
        with:
          go-version: '1.20.x'

      - name: Install dependencies
        run: go mod download

      - name: Run Unit Tests
        run: go test ./...

Semgrep - SAST scan

semgrep:
    name: Semgrep SAST scan
    runs-on: ubuntu-latest
    container:
      image: returntocorp/semgrep
    steps:
      - name: clone application source code
        uses: actions/checkout@v3

      - name: run scan
        run: |
          semgrep \
            --sarif --output report.sarif \
            --metrics=off \
            --config="p/default"

      - name: save report as pipeline artifact
        uses: actions/upload-artifact@v3
        with:
          name: report.sarif
          path: report.sarif

      - name: Download report
        uses: actions/download-artifact@v3
        with:
          name: report.sarif

Build Docker image and deploy to ECS dev

After the unit tests, secrets scan, and SAST have run, we run the dev deployment. This step also inspects the scan results from ECR and checks there are no critical or high vulnerabilities in our container.

deploy_dev:
    name: Deploy Development
    runs-on: ubuntu-latest
    environment: dev
    needs:
      - secrets_scan
      - semgrep
      - unit_tests

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v4
        with:
          aws-access-key-id: ${{ secrets.DEV_AWS_ACCESS_KEY_ID }}
          aws-secret-access-key: ${{ secrets.DEV_AWS_SECRET_ACCESS_KEY }}
          aws-region: ${{ env.AWS_REGION }}

      - name: Login to Amazon ECR
        id: login-ecr
        uses: aws-actions/amazon-ecr-login@v2

      - name: Build, tag, and push image to Amazon ECR
        id: build-image
        env:
          ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
          IMAGE_TAG: ${{ github.sha }}
        run: |
          # Build a docker container and
          # push it to ECR so that it can
          # be deployed to ECS.
          docker build -t $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG -t $ECR_REGISTRY/$ECR_REPOSITORY:latest .
          docker push $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG
          docker push $ECR_REGISTRY/$ECR_REPOSITORY:latest
          echo "image=$ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG" >> $GITHUB_OUTPUT

      - name: Scan Docker image
        id: docker-scan
        uses: alexjurkiewicz/ecr-scan-image@v1.7.1
        env:
          ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
          IMAGE_TAG: ${{ github.sha }}
        with:
          repository: ${{ env.ECR_REPOSITORY }}
          tag: ${{ env.IMAGE_TAG }}
          fail_threshold: high

      - name: Download task def
        run: |
          aws ecs describe-task-definition --region ${{ env.AWS_REGION }} --task-definition ${{ env.ECS_TASK_DEFINITION }} --query taskDefinition > dev-task-definition.json

      - name: Fill in the new image ID in the Amazon ECS task definition
        id: task-def
        uses: aws-actions/amazon-ecs-render-task-definition@v1
        with:
          task-definition: dev-task-definition.json
          container-name: ${{ env.CONTAINER_NAME }}
          image: ${{ steps.build-image.outputs.image }}

After deployment to dev is successful, we concurrently run DAST and integration tests against the dev service.

ZAP - DAST

dast_scan:
    name: ZAP DAST scan
    runs-on: ubuntu-latest
    needs:
      deploy_dev
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: ZAP Scan
        uses: zaproxy/action-full-scan@v0.8.0
        with:
          target: ${{ env.DEV_ECS_SERVICE_URL }}
          fail_action: true          # Fail if there are any alerts
          allow_issue_writing: false # Don't create Github Issues
          rules_file_name: ./.github/files/ignore-rules-list.txt

Newman - Integration Tests imported from Postman

newman_integration_test_dev:
    name: Dev Integration Tests
    runs-on: ubuntu-latest
    needs:
      - deploy_dev
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - uses: matt-ball/newman-action@v2.0.0
        with:
          collection: ./integration/sample-service.postman_collection.json
          environment: ./integration/dev/sample-service-dev.postman_environment.json

Build Docker image and deploy to ECS production

After all of the previous steps we are confident that the service is ready to be deployed to production!

deploy_prod:
    name: Deploy Production
    runs-on: ubuntu-latest
    environment: prod
    needs:
      - dast_scan
      - newman_integration_test_dev

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v4
        with:
          aws-access-key-id: ${{ secrets.PROD_AWS_ACCESS_KEY_ID }}
          aws-secret-access-key: ${{ secrets.PROD_AWS_SECRET_ACCESS_KEY }}
          aws-region: ${{ env.AWS_REGION }}

      - name: Login to Amazon ECR
        id: login-ecr
        uses: aws-actions/amazon-ecr-login@v2

      - name: Build, tag, and push image to Amazon ECR
        id: build-image
        env:
          ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
          IMAGE_TAG: ${{ github.sha }}
        run: |
          # Build a docker container and
          # push it to ECR so that it can
          # be deployed to ECS.
          docker build -t $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG -t $ECR_REGISTRY/$ECR_REPOSITORY:latest .
          docker push $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG
          docker push $ECR_REGISTRY/$ECR_REPOSITORY:latest
          echo "image=$ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG" >> $GITHUB_OUTPUT

      - name: Download task def
        run: |
          aws ecs describe-task-definition --region ${{ env.AWS_REGION }} --task-definition ${{ env.ECS_TASK_DEFINITION }} --query taskDefinition > prod-task-definition.json

      - name: Fill in the new image ID in the Amazon ECS task definition
        id: task-def
        uses: aws-actions/amazon-ecs-render-task-definition@v1
        with:
          task-definition: prod-task-definition.json
          container-name: ${{ env.CONTAINER_NAME }}
          image: ${{ steps.build-image.outputs.image }}

      - name: Deploy to Amazon ECS service
        uses: aws-actions/amazon-ecs-deploy-task-definition@v1
        with:
          task-definition: ${{ steps.task-def.outputs.task-definition }}
          service: ${{ env.ECS_SERVICE }}
          cluster: ${{ env.ECS_CLUSTER }}
          wait-for-service-stability: true

Outside of project scope and potential future improvements

TLS connections on traffic from the ALB to the ECS service. This would include adding self-signed certificates on the service itself and I felt that it wouldn't be necessary for this specific project. This would necessary if there was a compliance requirement for end-to-end encrpytion (E2EE), like HIPAA. This technically isn't pure E2EE since the ALB decrypts and re-encrypts traffic, but HIPAA deems this as acceptable.
Performance testing in the Github Actions pipeline. While I agree that performance testing is important, since the application isn't being used by the public, I don't think spending the time using a performance test would be beneficial. In the past I've used JMeter and K6.
Breaking up the pipeline for PRs. Since I'm the only one that worked on this project I'm not using branching. If this was a real production project, code would have to be peer reviewed before deploying and I would have PRs run the unit tests, SAST, and secrets scan before allowing merges.
Alerting on pipeline failure. This pipeline already sends alerts to my email account linked to my Github account, but I've always found that to be an inefficient way of doing alerts. In the past, I've added Slack alerts to specific company channels and feel like that is an appropriate way of alerting, if not as well alerting on normal paging channels (ie. PagerDuty, OpsGenie, etc).
Using OIDC provider to authenticate Github actions pipeline instead of AWS users. This is a better option for credentials for your pipeline because they use short lived STS credentials, but it costs money to setup.

Overview

I really enjoyed working on this project. It has a lot of elements of topics I like to work on; CICD, security, and service management. Thank you for reading the article, please share it if you thought it was interesting or useful.
